Features
- Rugged structure made of steel painted (or in stainless steel on request)
- Transmission system by double chain and motor reducer
- Four wheels with locked device help moving operation
- Safety cage manufactured following EC regulations

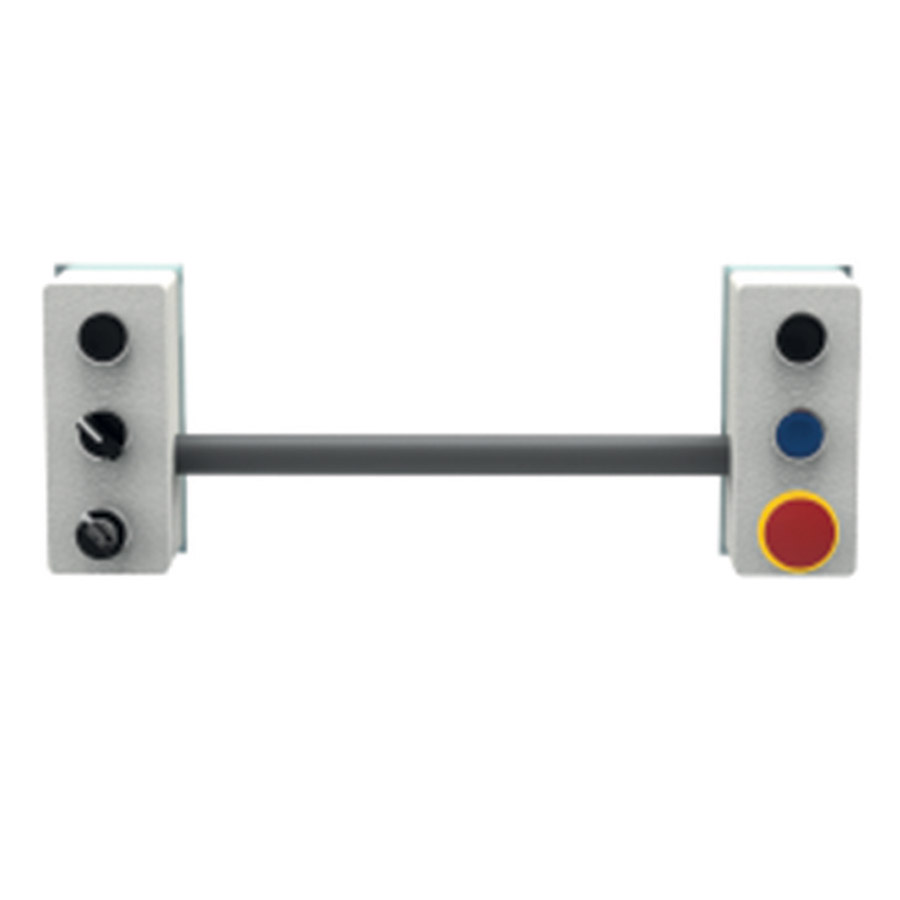

- Manual functioning with presence of operator
- Hopper for helping the product to go into another feeding hopper
- Two speed by inverter: high speed for lifting/lowering the bowl and low speed for tilting the bowl
| Bowls | liters | 80 - 100 - 120 - 140 - 160 |
|---|---|---|

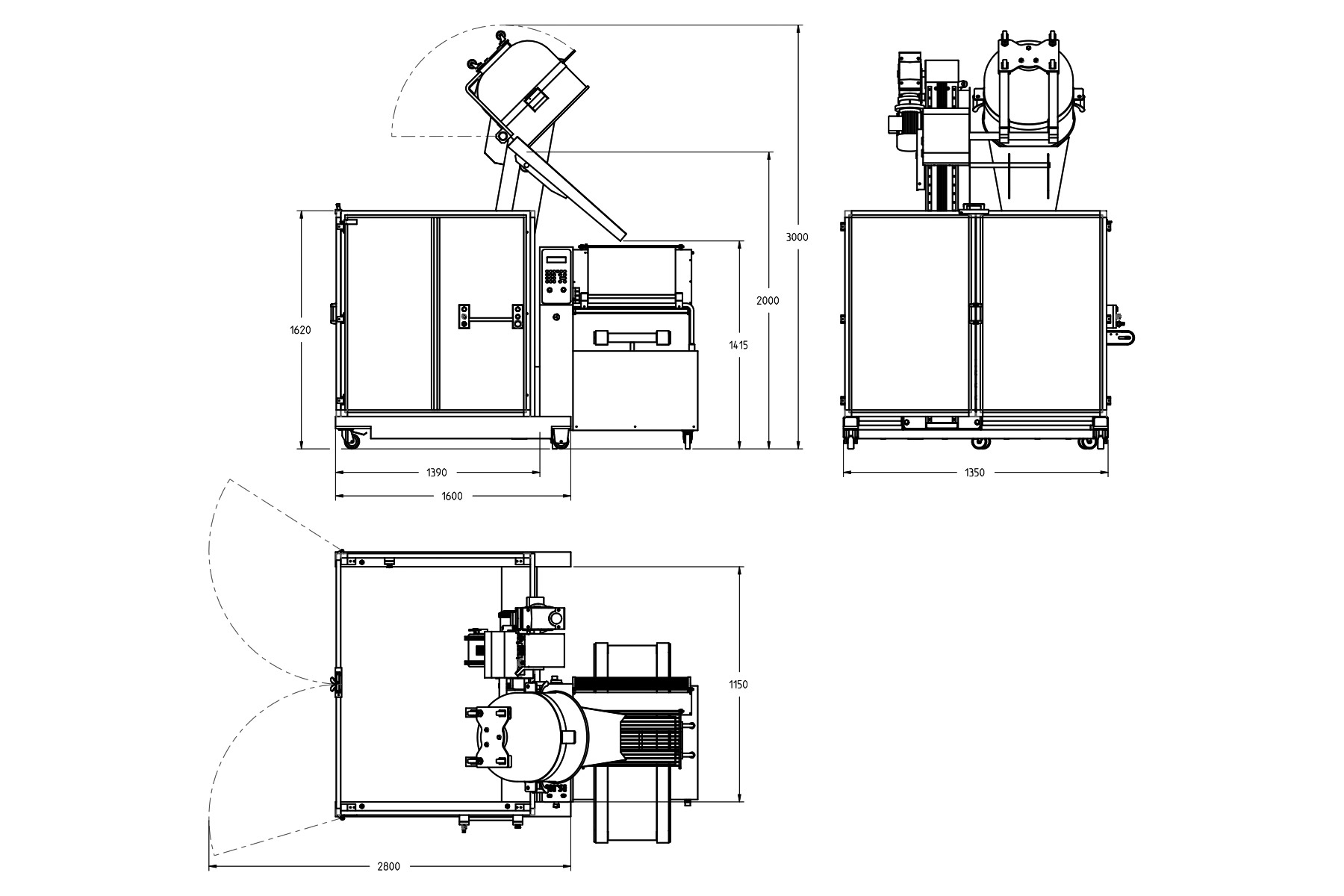

| Standard discharged height (Different discharge height is possible on request) |
mm | 1415 |
| Motor power |
kW | 1.5 |
| Standard voltage |
Volt Phase HZ |
230 1 50-60 |
| Net weight |
Kg | 550 |
| Maximum load |
Kg | 200 |
