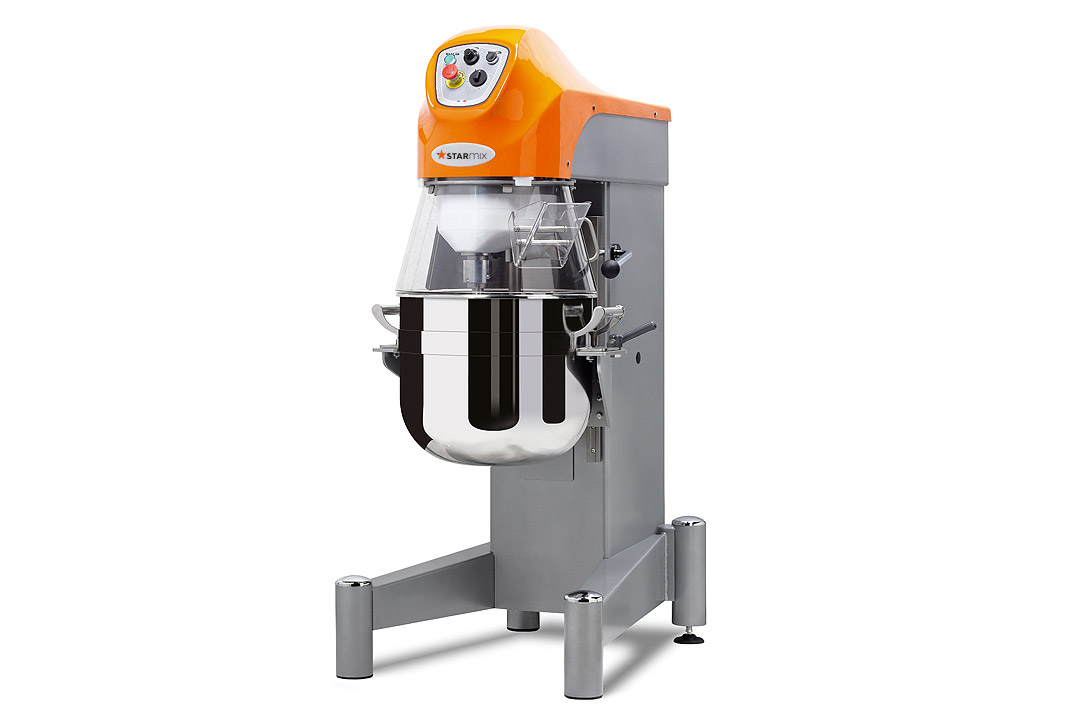

>> Planetary Mixers N series
-
Features
- Bowl capacity 60 liters
- Models by 3 speed or by electronic variable speed by inverter

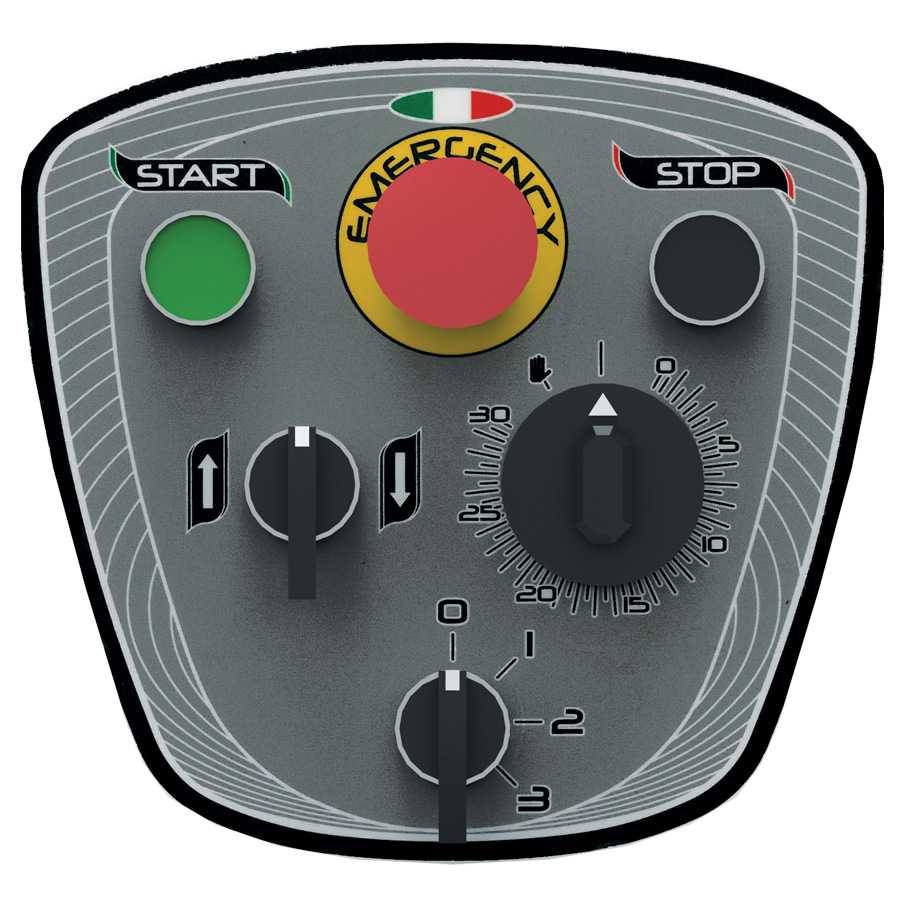

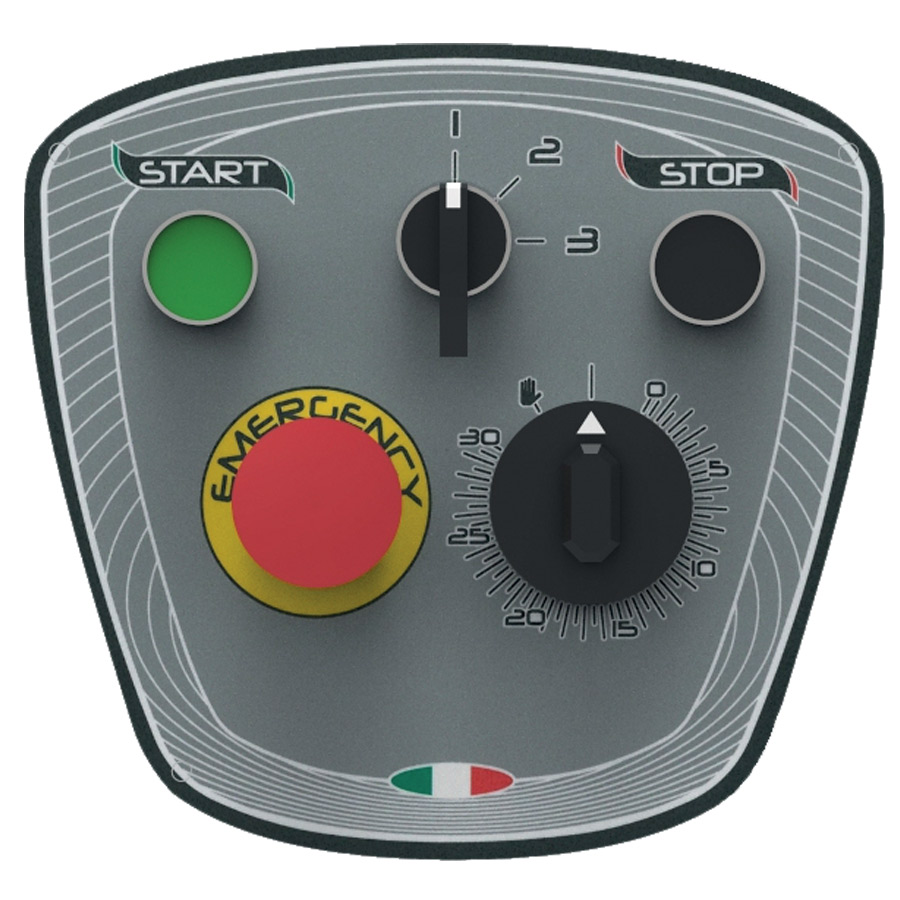

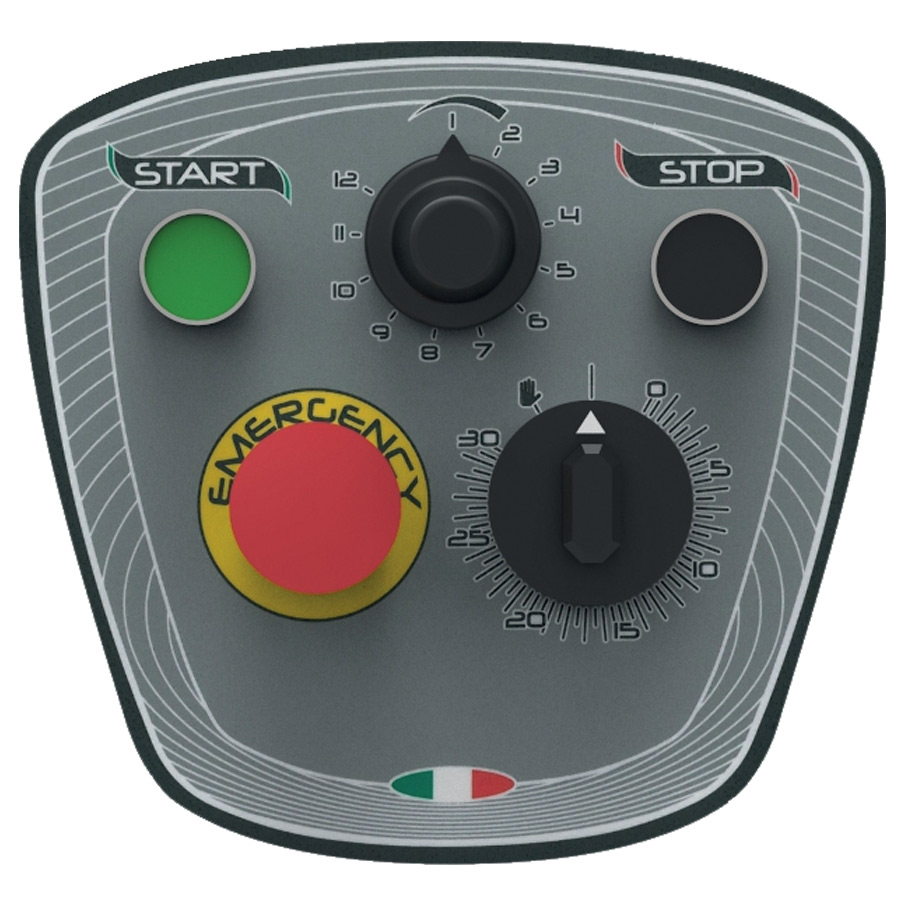

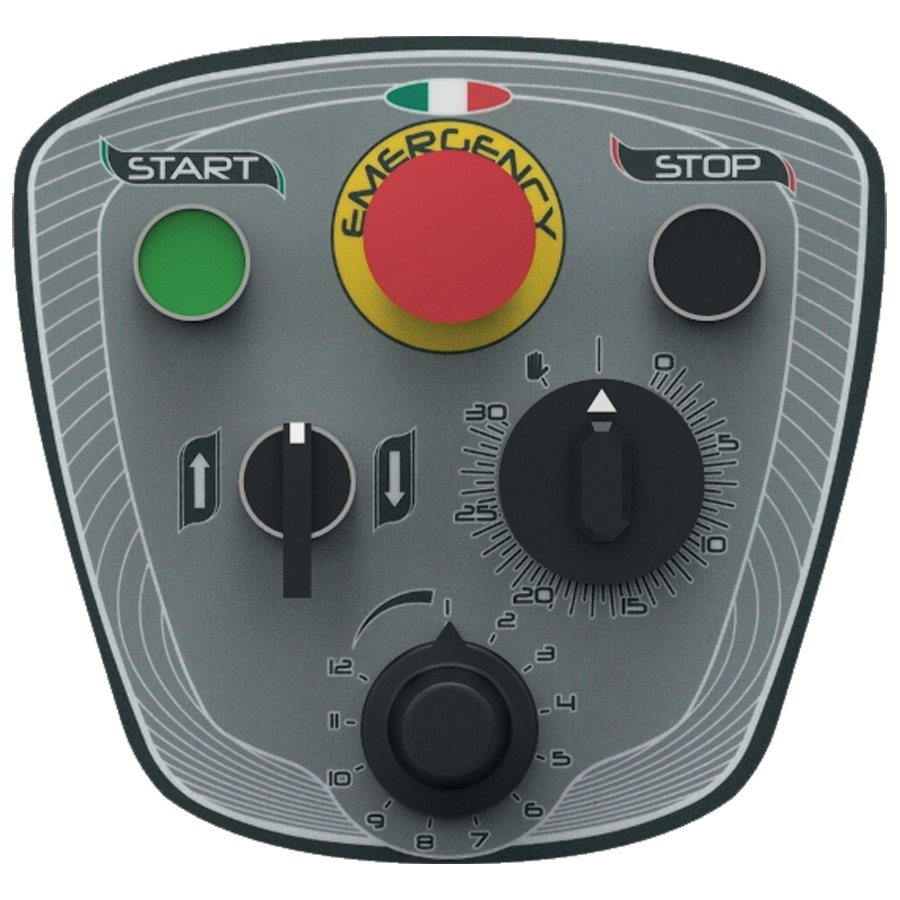

- Electromechanical control panel
- Manual bowl lift or automatic on request
- Fixed rotating plastic safety guard "F"
- Structure in painted steel or in stainless steel on request
| Machine code | Bowl capacity liters | Dimension mm | Machine weight Kg | Power kW | Speed Rpm | Standard voltage V / PH / Hz | Reduction liters |
|---|---|---|---|---|---|---|---|
| PL60N3F | 60 | 950x685x1562 | 230 | 0,9 / 1,8 / 2,2 | 1° 36 (116) 2° 73 (235) 3° 145 (467) |
400 / 3 / 50 | 20 / 40 |
| PL60N3AF | 60 | 950x685x1562 | 230 | 0,9 / 1,8 / 2,2 + 0,5 | 1° 36 (116) 2° 73 (235) 3° 145 (467) |
400 / 3 / 50 |
20 / 40 |
| PL60NVF | 60 | 950x685x1562 | 230 | 3 | Min. 36 (116) Max. 160 (513) |
400 / 3 / 50 230 / 1 / 50 60 |
20 / 40 |
| PL60NVAF | 60 | 950x685x1562 | 230 | 3 + 0,5 | Min. 36 (116) Max. 160 (513) |
400 / 3 / 50 | 20 / 40 |
